SVL75-3

SVL75-3

CONSTRUCTION

Call for Pricing

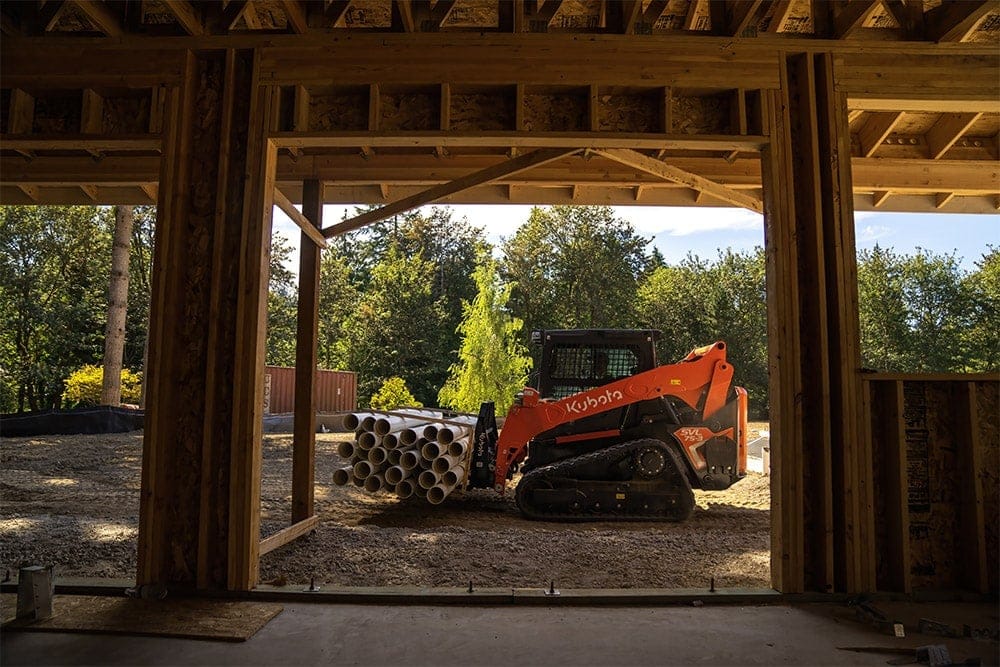

When you’re looking for comfort, practicality, and versatility, you can’t beat the experience that the new Kubota SVL75-3 gives you. The SVL75-3 replaces the popular SVL75-2 with a wide range of performance, comfort and productivity features. Still rated at 74.3 horsepower, but with a higher peak torque, the SVL75-3 is suited for whatever you throw in its way – digging, and moving materials, grading, landscaping, or hardscaping. Available as an open or closed cab, the SVL75-3’s side-screen to side-screen width of 36 inches means you’ll have plenty of room to stretch out, and a comfortable operator is a productive one.

Shop

Find Parts

Build

My Equipment

Download

Specifications

Compare

Specifications

Special Offers

  • Implement Stand Alone Financing

    Stand Alone Financing Installment Program

    Implement Stand Alone Financing
  • Farmer Veteran Coalition Rebate

    Customer instant rebate for Farmer Veteran Coalition members.

    Farmer Veteran Coalition Rebate
  • LOW-RATE RENTAL BUSINESSES*

    *Not Available for National Accounts or Government Customers

    LOW-RATE RENTAL BUSINESSES*
  • TRACK LOADERS

    Save up to $4000 or 0% A.P.R. FOR UP TO 48 MONTHS with 0% Down ON SVL SERIES!

    TRACK LOADERS
  • Construction

    $0 Down, 0% A.P.R. for up to 60 Months or Save up to $6,000 on Construction Equipment!

    Construction
Standard 2-Speed Travel and Selectable One-Way Self-Level

Standard 2-Speed Travel and Selectable One-Way Self-Level

Shift from low gear to high gear to get the job done faster. One-way hydraulic self-leveling can be engaged at the flip of a switch and helps keep the bucket or pallet forks in a horizontal position without the need to manually adjust the angle during lifting.

Available with Low Effort Hydraulic Pilot Controls

Available with Low Effort Hydraulic Pilot Controls

Work next to home structures and curbs with confidence. Different from Electro-Hydraulic Controls, these hydraulic controls provide maximum feel and precision – with no adjustments or settings necessary. Start moving when you think you’re going to start, and stop moving when you think you’re going to stop.

One-piece, Sealed Cab

One-piece, Sealed Cab

The SVL75-3 is equipped with Kubota’s new one-piece sealed cab that helps prevent dirt, dust, rain and debris from entering the operator space while also reducing noise levels.
Advanced Auto Downshift

Advanced Auto Downshift

The Advanced Auto Downshift system from Kubota Compact Track Loader automatically downshifts from high to low gear while making turns, providing the maximum amount of torque needed when exiting a turn.
Wider Cab Entrance

Wider Cab Entrance

The wide cab entrance, with a 36” side-screen to side-screen width, allows operators to comfortably pivot when looking to their rear. In addition, a high back seat provides back support from shoulders to lower torso. A comfortable operator is a productive operator.

Optional Reversing Fan

Optional Reversing Fan

The addition of a reversible fan helps disperse dirt and debris that can collect in the cooling system.
Advanced Multi-Function Valve

Advanced Multi-Function Valve

Enhances simultaneous operations, dramatically increasing the productivity of the bucket, and any AUX hydraulic attachment

Easy-Opening Sliding Front Door

Easy-Opening Sliding Front Door

When equipped with a cab enclosure, the cab door slides up and down to improve ingress and egress. Operators can pin the door in the open position and continue to operate with the door open, so there is no need to remove the door and store it where it can get lost or damaged. Front doors can be opened regardless of the loader position.

7” Touch Screen

7” Touch Screen

A new 7-inch color LCD touch panel with jog dial comes standard in the SVL75-3. The LCD panel gives operators access to a wide range of functions and vital information, like battery charge, hydraulic oil and coolant temperature, auxiliary mode and fuel level, and is also where the standard rear-view camera is displayed.

Standard Rear-view Camera

Standard Rear-view Camera

The new rear-view camera is integrated into the rear bonnet and offers a 176° range of rearward visibility, and is displayed on the new 7” touch screen.

SVL75-3

SVL75-3

HP

Call for Pricing

Specifications

Auxiliary Hydraulic Pressure, Psi (bar)

3185 (224.0)

Auxiliary Hydraulics Flow Rate, G P M ( L P M)

19.2 (72.7) / 29.8 (112.8)

Bucket Breakout Force, Lbf (kg)

6191 (2808)

Displacement Cu. In. (cc)

203.3

Ground Clearance, In (mm)

11.7 (296)

Ground Contact Pressure, Psi (k Pa)

Standard: 5.8 (40) / 5.9 (40.7) Wide: 4.7/4.8

Ground Pressure, (psi)

Standard: 5.8/5.9 Wide: 4.7/4.8

Height To Hinge Pin, In (mm)

122.7 (3117)

Horsepower (gross)

74.3

Lift Arm Breakout Force, Lbf (kg)

4723 (2142)

Lift Arm Path

Vertical

Operating Weight, Lbs (kg)

9190 (4169) / 9420 (4273)

Operator Station

Open cab / closed cab

Overall Height, In (mm)

81.8 (2078)

Overall Length, In (mm)

142.1 (3609)

Overall Width, In (mm)

Vehicle Width Standard Track / Wide Track, in (mm): 65.9 (1675) / 69.1 (1755), Width with Bucket, in (mm): 68 (1727)

Rated Operating Capacity ( R O C), Lbs (kg)

2490 (1043)

Tipping Load, Lbs (kg)

7112 (3226)

Track Ground Contact Length, In. (mm)

56.5 (1436)

Track Rollers (per Side)

4

Track Width (standard/wide), In. (mm)

12.6 (320) / 15.8 (400)

Traction Force, Lbf (kgf)

9678 (4390)

Traveling Speed: High, Mph (kph)

8.6 (13.7)

Traveling Speed: Low, Mph (kph)

5.6 (9.0)
